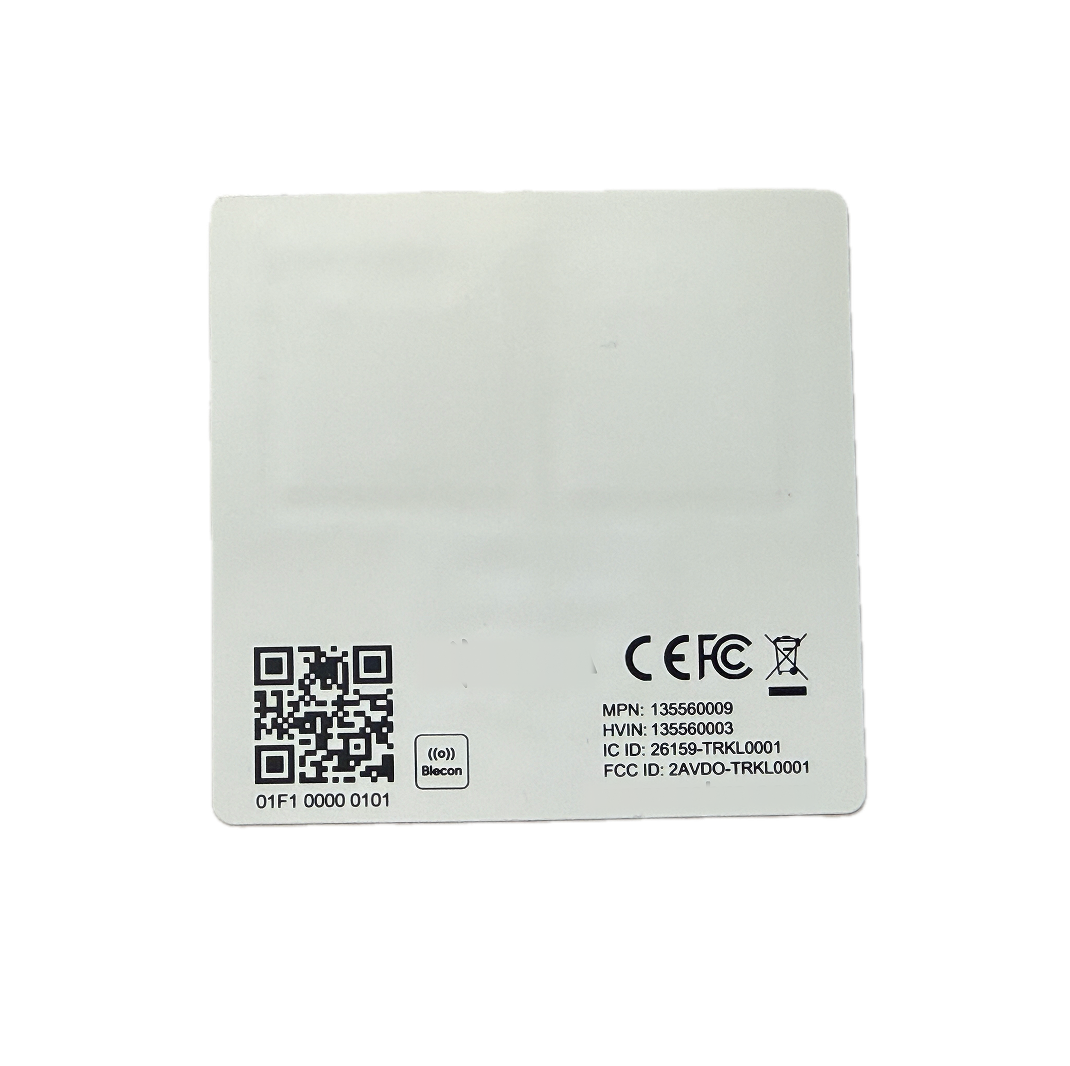

Blecon TL05 Smart Label (BCN-B-10203)
Single-use BLE smart label for tracking and temperature sensing across single-journey shipments. See the product page for full details.
Specifications
| Property | Value |
|---|---|
| SKU | BCN-B-10203 |
| Dimensions | 76 × 76 × 0.8 mm |
| Service life | 90 days |
| Temperature range | −30°C to +60°C |
| Humidity range | 20–85% RH |
| Battery | Zinc (air-freight safe, no lithium restrictions) |
| Certifications | FCC, IC, CE, RoHS |
Activation
Peel the backing from the label. The gold contact pads must come away with the backing — if the pads remain on the label face, it has not activated correctly. Once the backing is removed, the label begins broadcasting immediately and cannot be deactivated.
Apply the label adhesive-side down to a clean, dry surface on the asset or packaging. Avoid sticking directly to metal surfaces, as metal reduces Bluetooth range.
Registration
Scan the QR code printed on the label using the Blecon Agent or a scan link. The label is added to your workspace and appears on the live map once a hotspot detects it.
See Adding tags to Blecon Track for all registration options.
