Blecon SH01-BCN Micro Tag (BCN-B-10301)

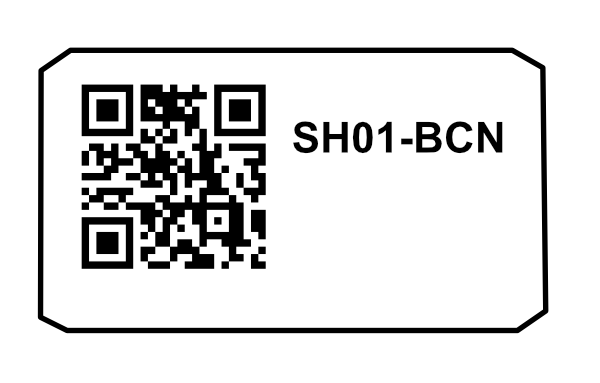

SH01-BCN

Compact hard tag for high-volume applications. Its adhesive backing bonds to most surfaces, including stainless steel, plastics and powder-coated paint. See the product page for full details.

Specifications

Property Value
SKU BCN-B-10301
Form factor Compact hard tag
Dimensions 46 × 26 × 4 mm
Weight Approximately 10 g
Service life 1,095 days (3 years)
Mounting Adhesive backing (3M 300LSE)

Activation

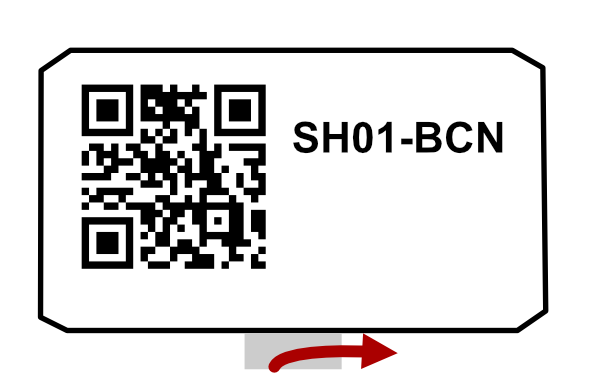

Pull the plastic tab on the bottom edge sideways, not downward, to detach it. The tag begins broadcasting immediately.

Front of the SH01-BCN with the plastic activation tab on its bottom edge. A red arrow points sideways along the edge, the direction to pull the tab.

Registration

Scan the QR code on the tag using the Blecon Agent or a workflow. The tag is added to your workspace and appears on the live map once a hotspot detects it.

You can register the tag before or after you mount it. If you register it after, mount it with the QR code visible.

See Adding tags to Blecon Track for all registration options.

Mounting

Location

Mount the tag on a rigid, flat surface. For the best range, choose a place where the asset itself and the goods it carries do not block the tag. An outer face of the asset is usually the best place.

The orientation of the tag is not important, because its antenna transmits in all directions.

Attaching the tag

  1. Clean the surface and let it dry fully.
  2. Peel the backing off the back of the tag to expose the adhesive.
  3. Press the tag onto the surface.
  4. Do not move the tag for 15 minutes. The bond continues to get stronger over the next 72 hours.

Questions? Contact Blecon support — we're happy to help.
