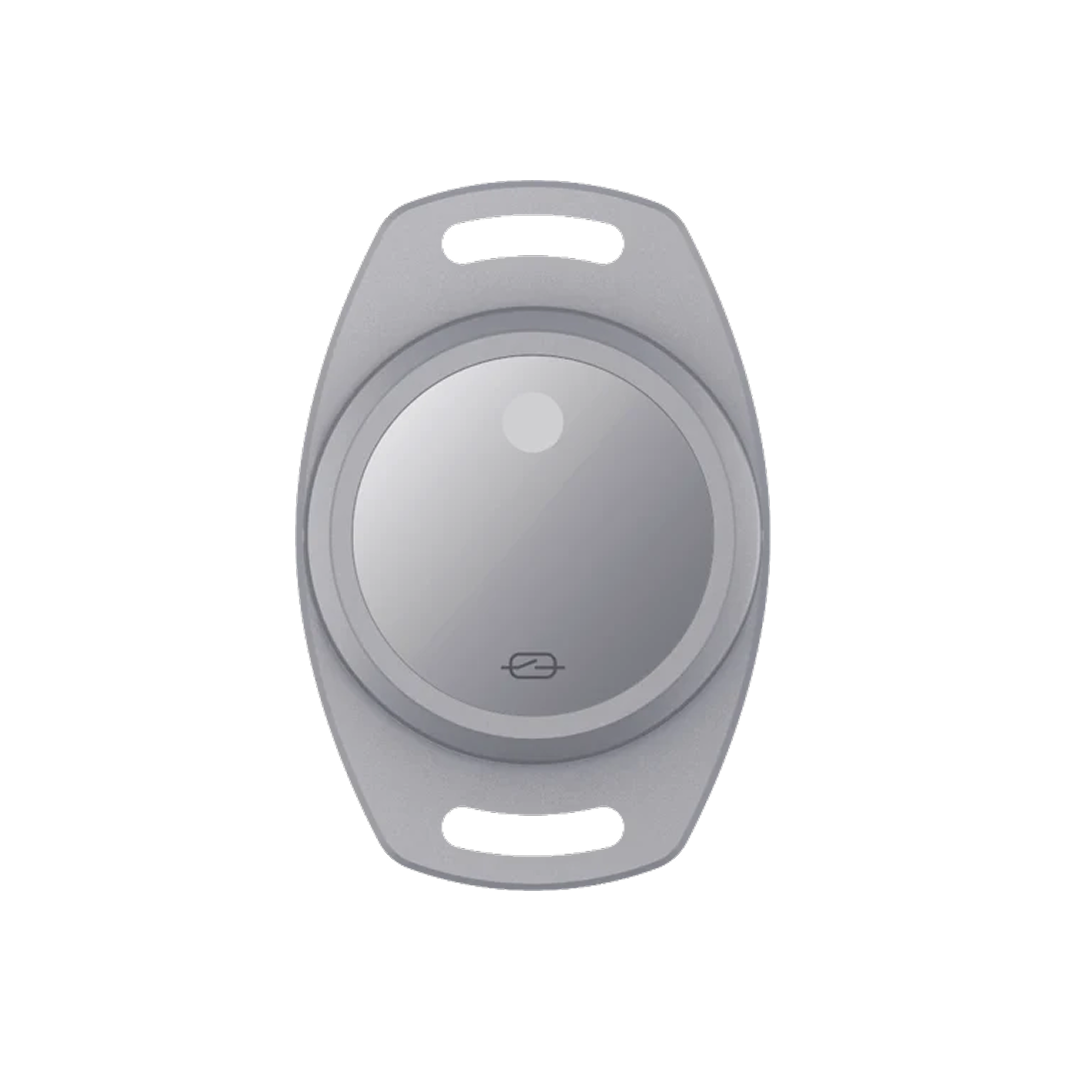

Moko L02S-BCN (BCN-S-10102)
Reusable multi-sensor tag with onboard logging for long-life asset tracking and cold chain monitoring. See the product page for full details.
Specifications
| Property | Value |
|---|---|
| SKU | BCN-S-10102 |
| Dimensions | 69.9 × 46.7 × 18 mm |
| Service life | 730 days (2 years) |
| IP rating | IP67 |
| Operating temperature | −20°C to +60°C |
| Certifications | FCC, CE, RoHS, WEEE |
| Mounting | Double-sided adhesive, screws, or zip-tie |
Sensors
| Sensor | Accuracy |
|---|---|
| Temperature | ±0.5°C (calibrated) |
| Humidity | ±2% RH (calibrated) |
| Barometric pressure | — |
| 3-axis accelerometer | — |
| Ambient light | — |
| Hall effect (magnetic) | — |
Activation

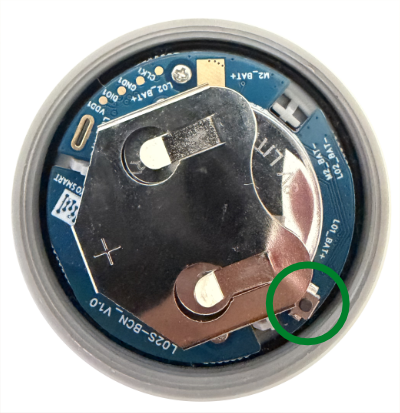

Unscrew the case and press the small button inside. The tag begins broadcasting immediately. Replace and resecure the case before deploying.
Registration
Scan the QR code on the tag using the Blecon Agent or a scan workflow. The tag is added to your workspace and appears on the live map once a hotspot detects it.
See Adding tags to Blecon Track for all registration options.
